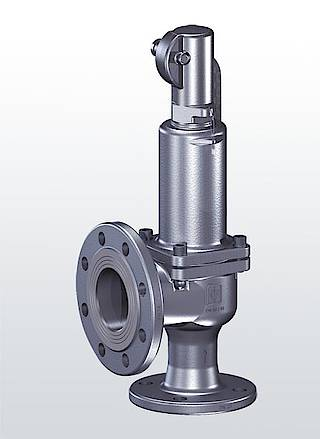

Série 452bHL - Pojistný ventil s vlnovcem

Parametry

Katalogové číslo Série 452bHL
Výrobce Goetze KG Armaturen
Teplota: -10°C .. +120°C
Tlakový rozsah: 0,5 - 25 bar
Materiál: Nerezová ocel
Připojení: Přírubové
DN: 40, 50
PN: 25
Médium: kapaliny (neutrální)

Popis

Safety valves with bellows made of stainless steel, angle type with flange connections

Where highest material and quality standards are important, then safety valves made of stainless steel with flange connections can be an option. Also, this type of safety valve is made for the protection of large heating plants in the shipbuilding industry as well as in building technology applications represents a necessary addition to the comprehensive range of Goetze products.


For the protection of:

  • thermostatically protected closed-circuit water heating systems with flow temperatures of up to 120°C for all static heights or rated output above 350 kW according to TRD 721, DIN 4751 and  DIN EN 12828.
    Should the thermostatic limiting and control unit fail, the safety valve has to blow-off the total heating output of the boiler as hot water and steam.

As these valves are completely made of metal, they can also be installed at high environmental or radiation temperatures.

  • heating systems for building technology and industrial applications
  • co-generation plants (CHP)
  • biogas plants
  • district heating transfer stations, building sub-stations

Safety valves are set and sealed at the factory.
